Name: B612 Bicycle Pedals
SKU: 521119

Specifications

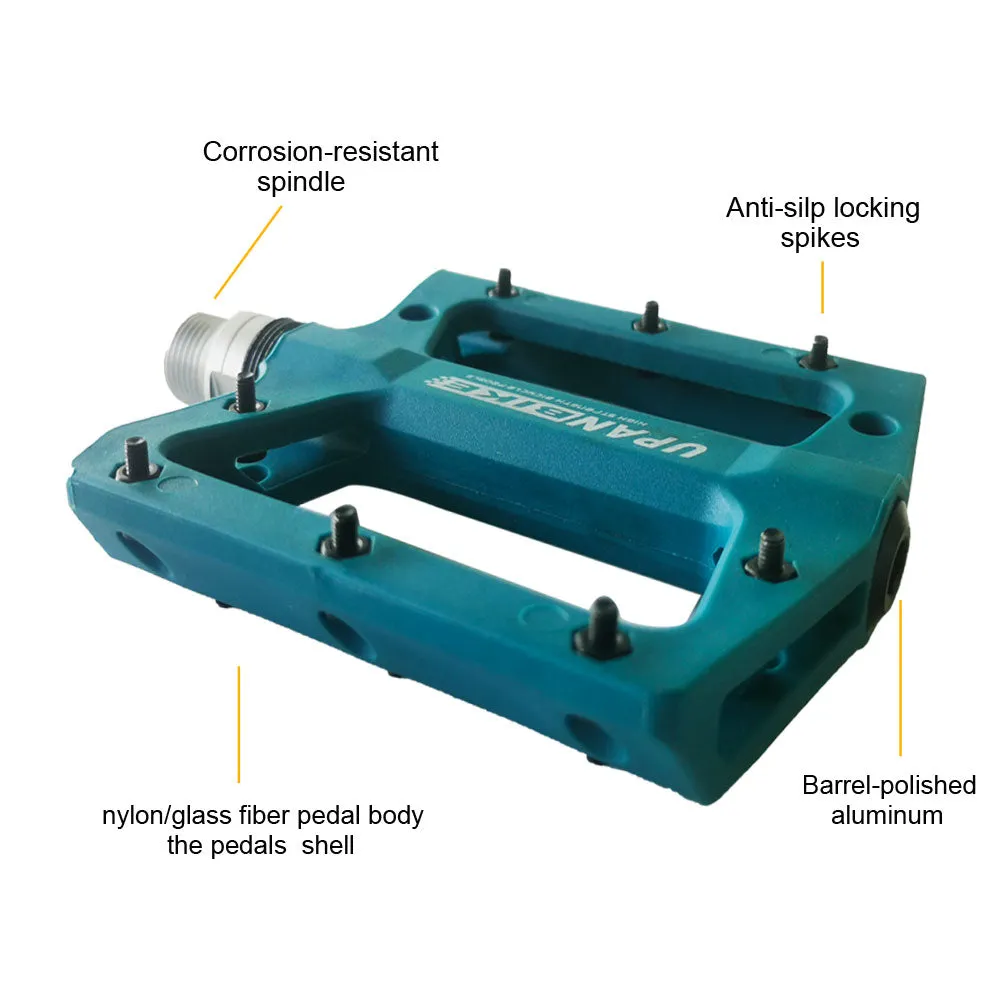

Pedals Material:Durable Polyamide
Axis Material:Chrome-molybdenum Steel
Pedal anti-skid nail material:Chrome-molybdenum steel
Spindle:9/16inch

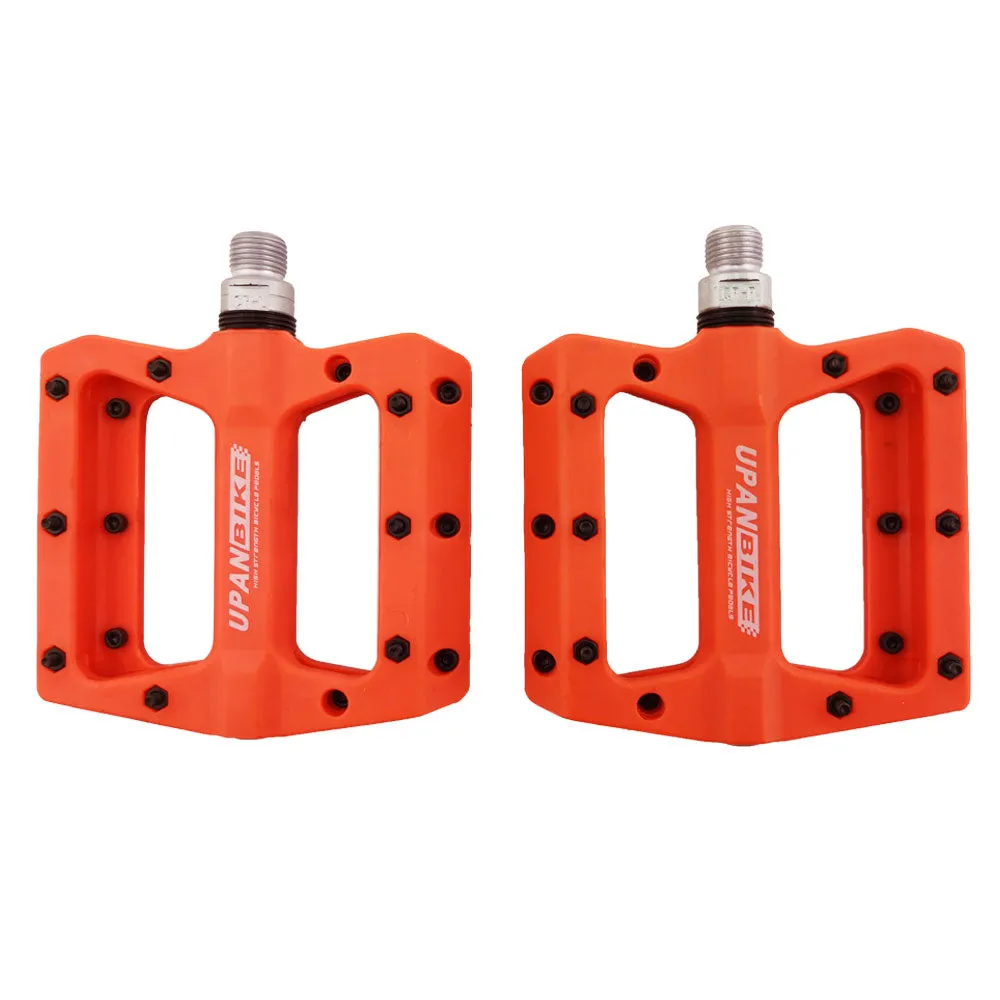

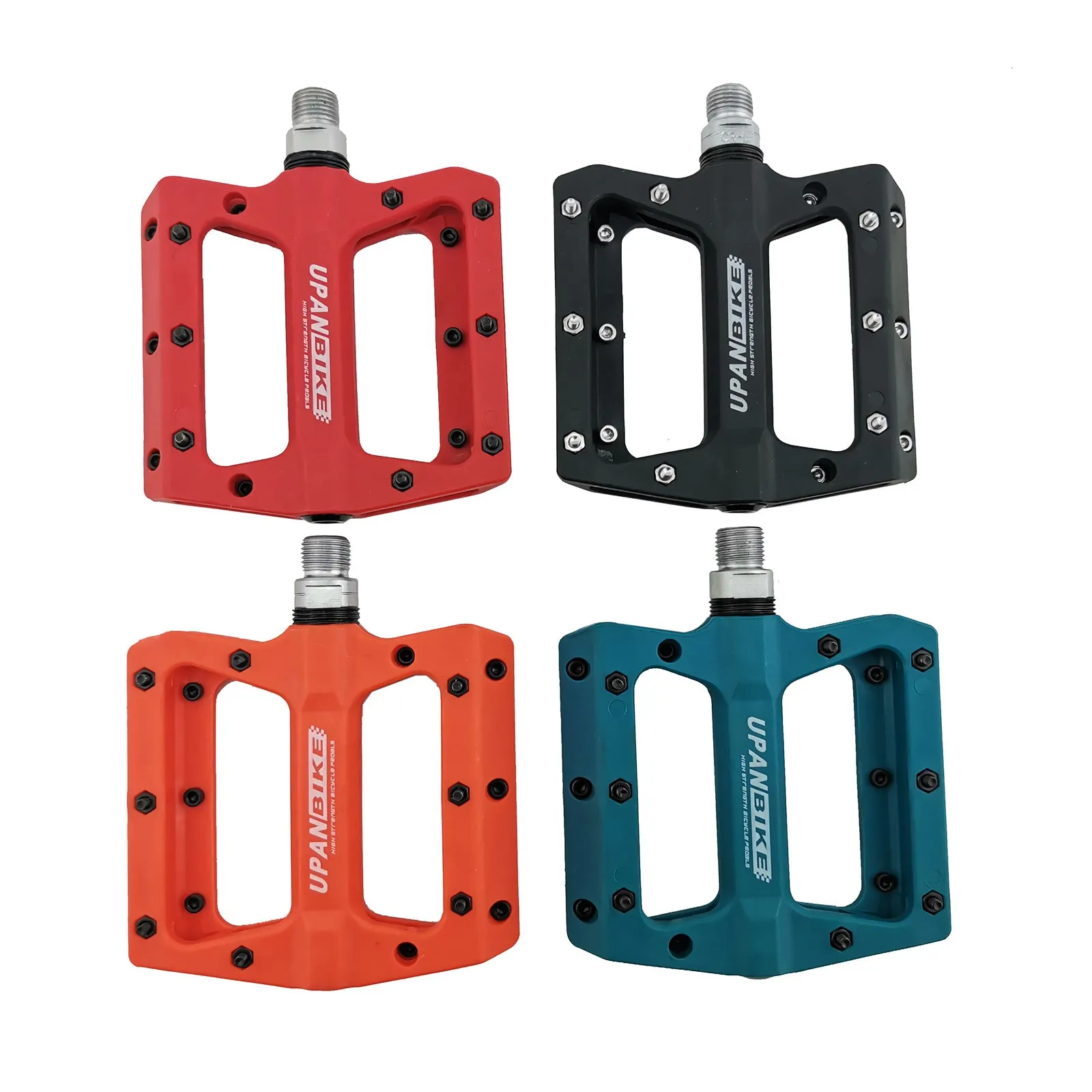

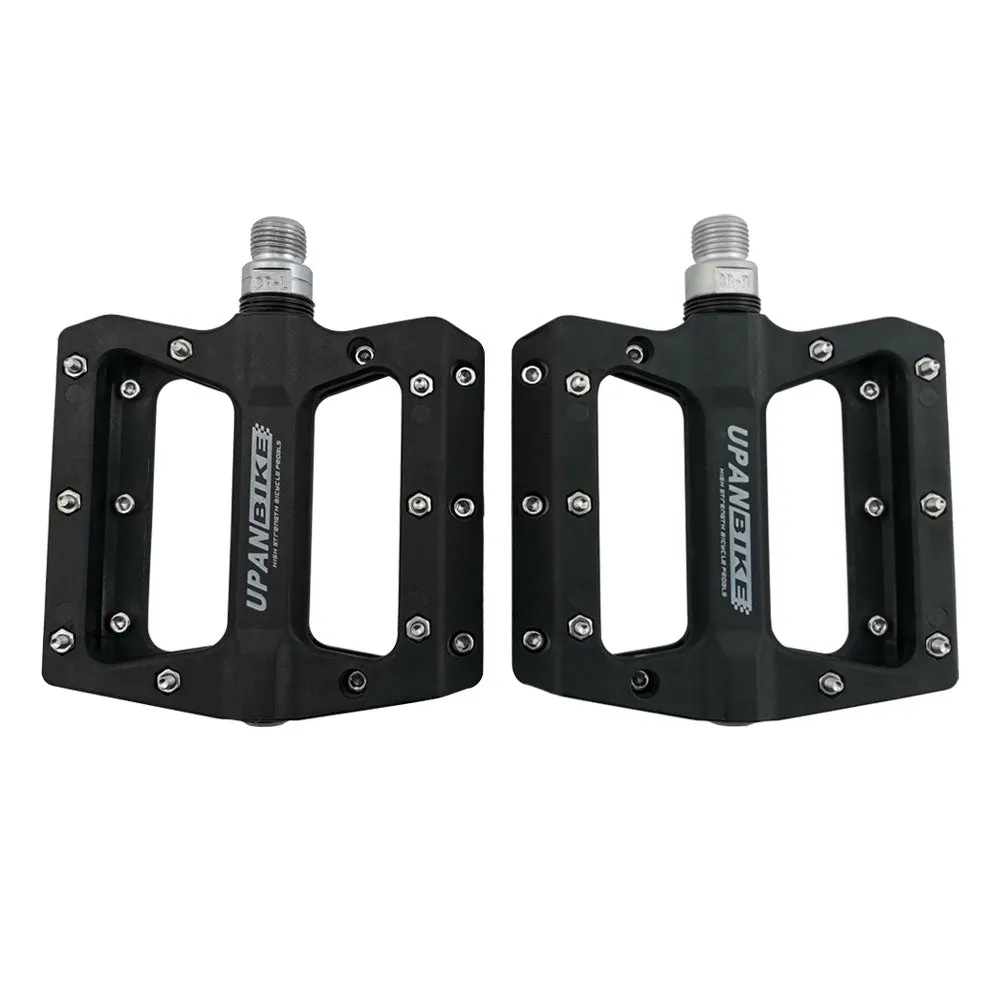

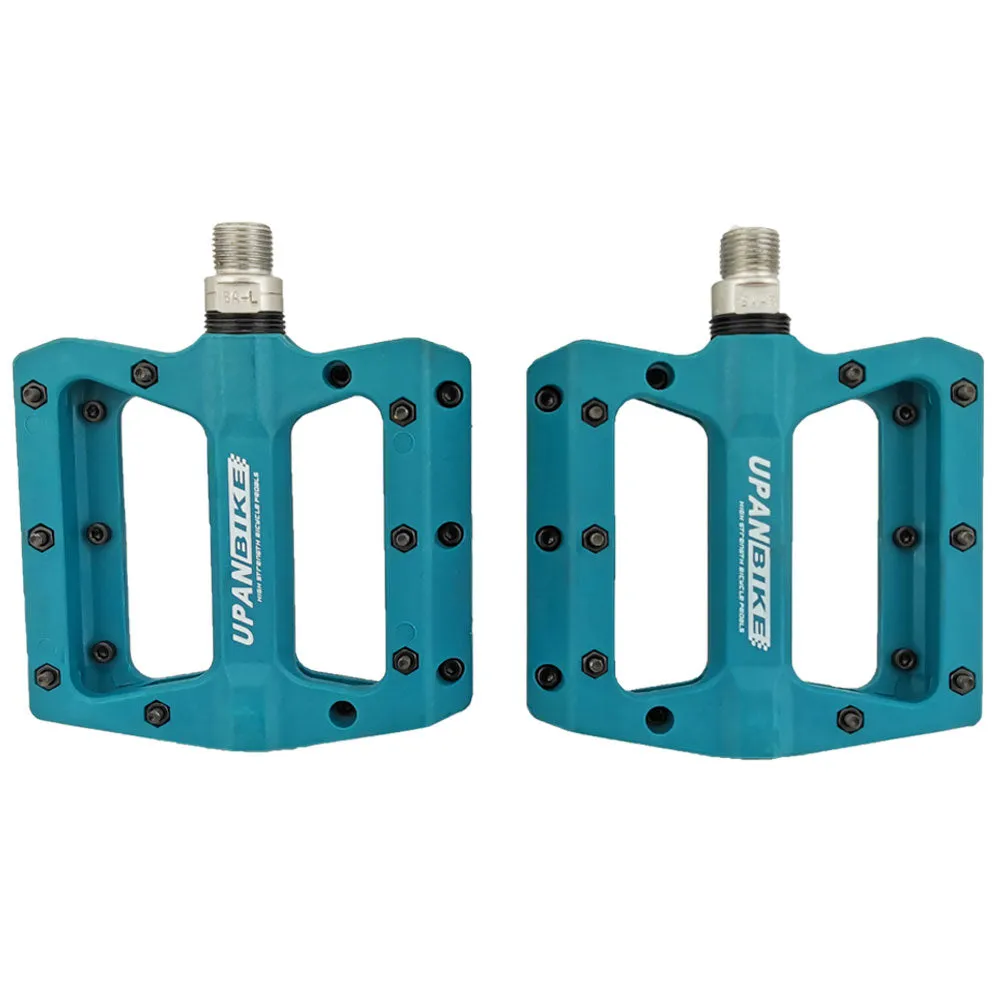

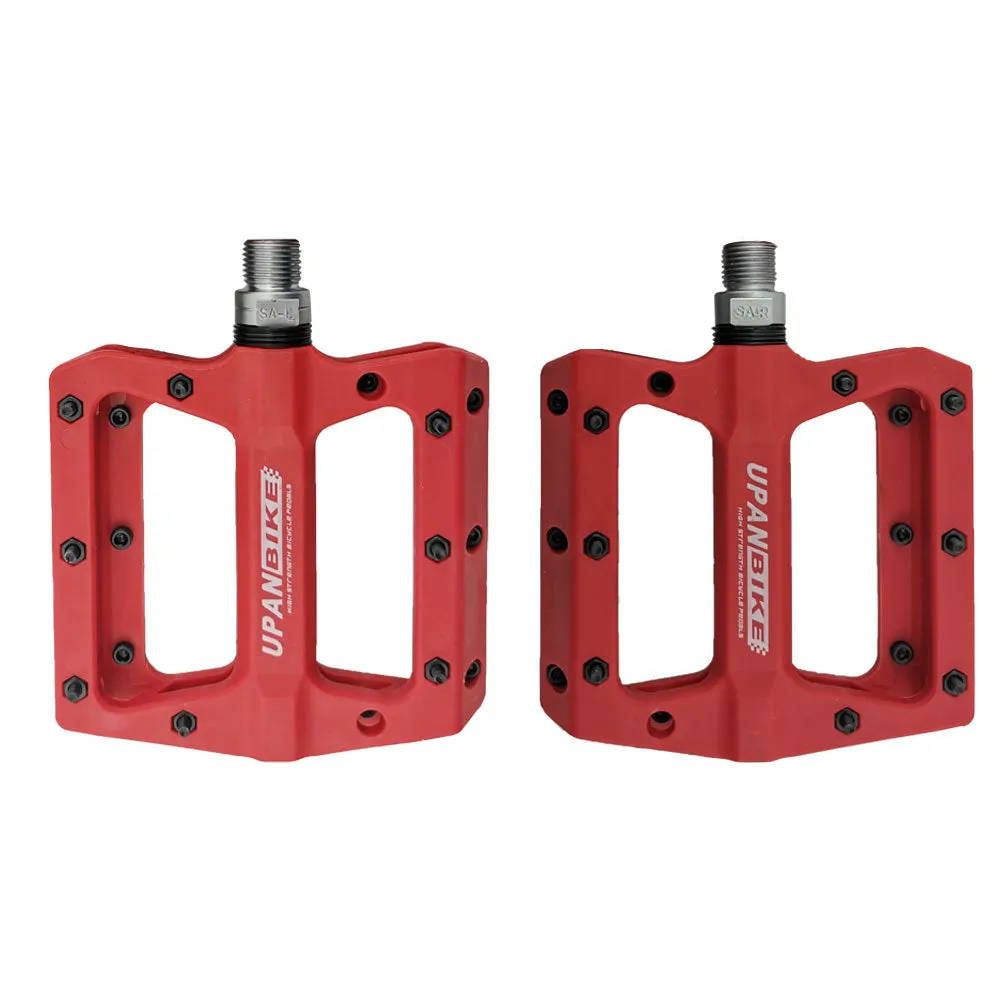

Color:Black;Red;Blue;Orange
Weight:420g/14.8oz/pair
For Bike Type:most kinds of bike

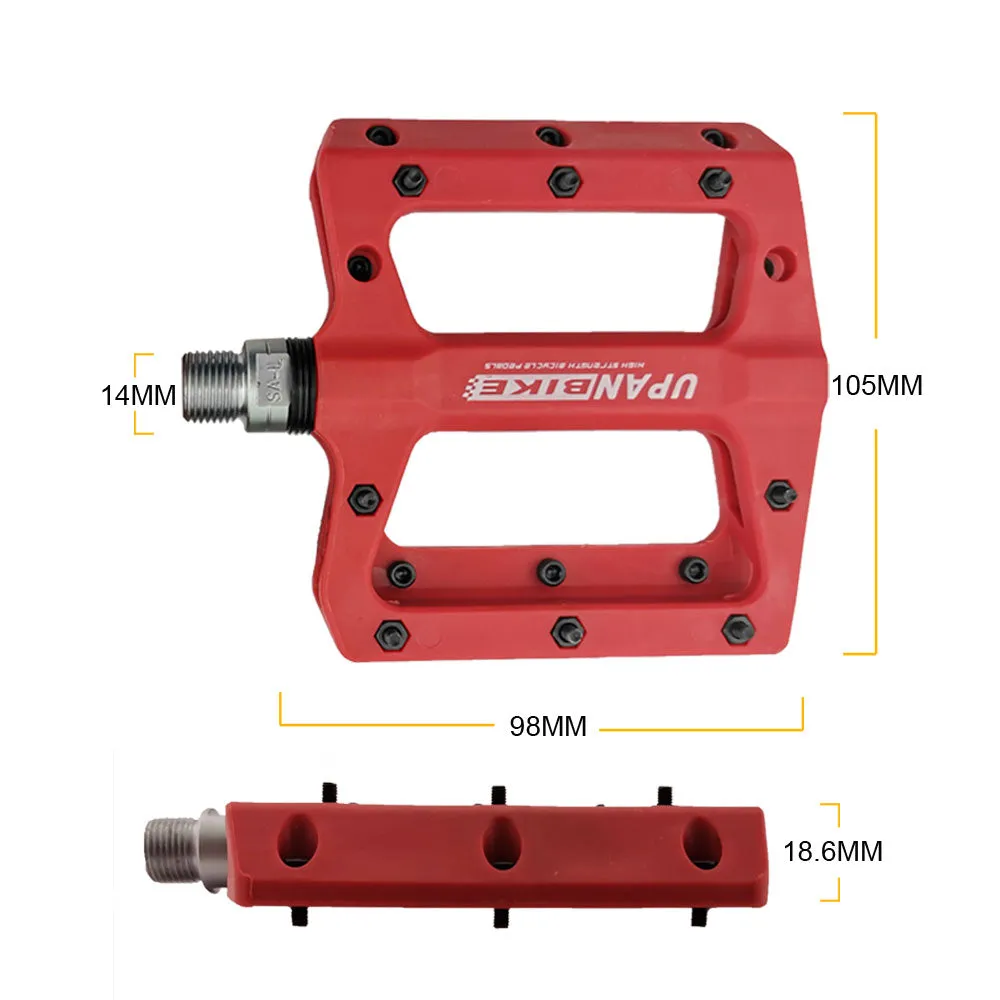

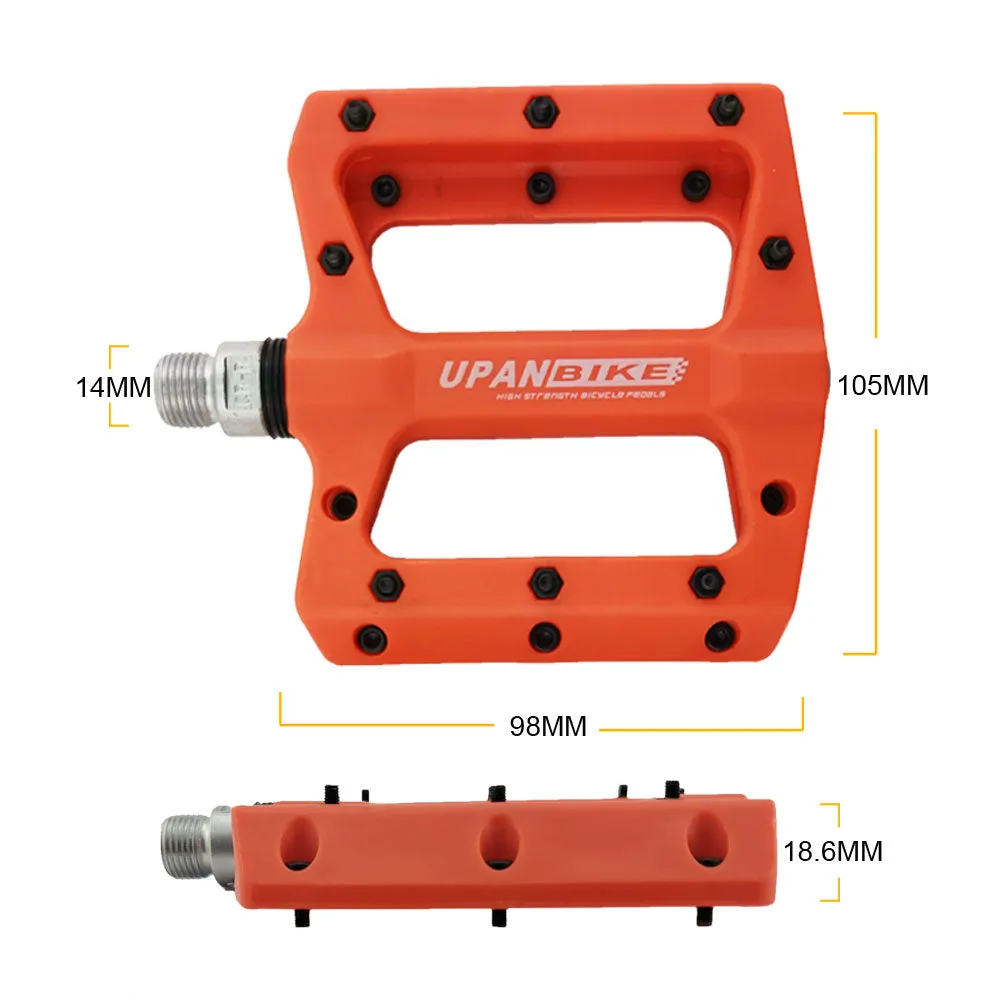

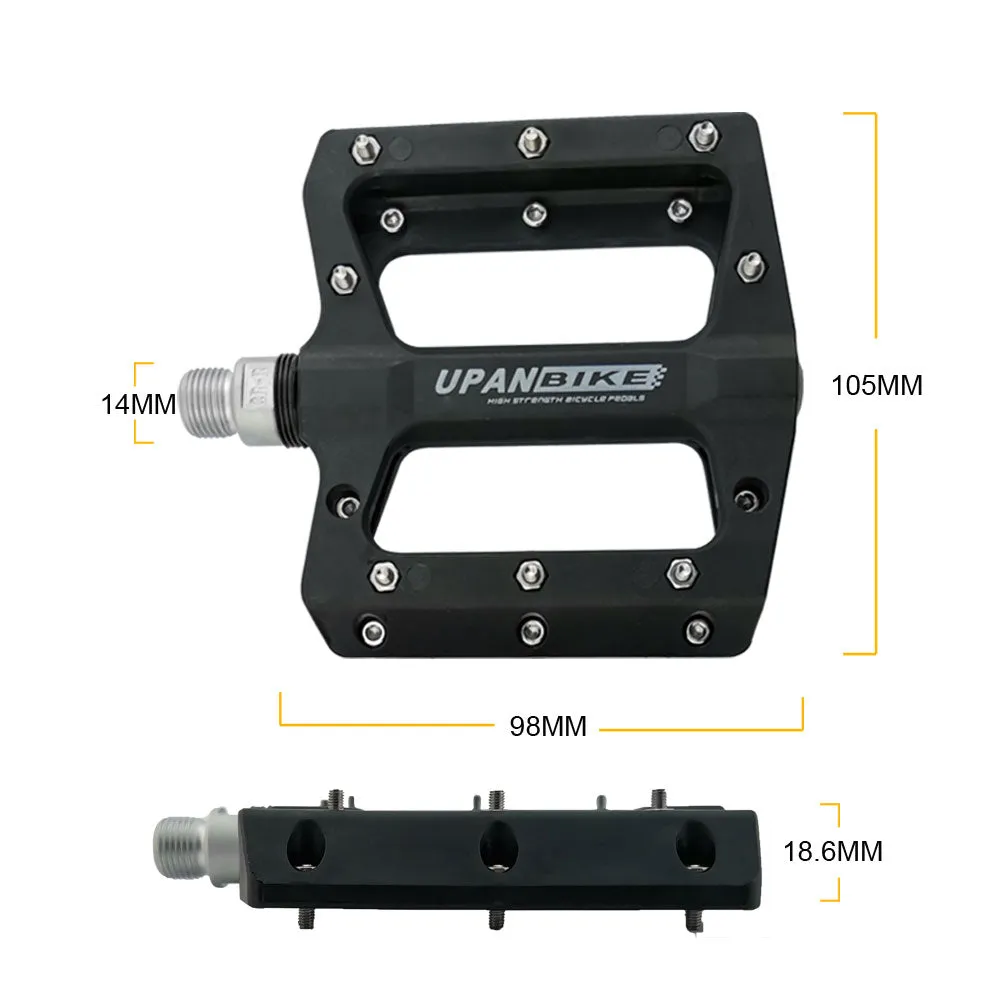

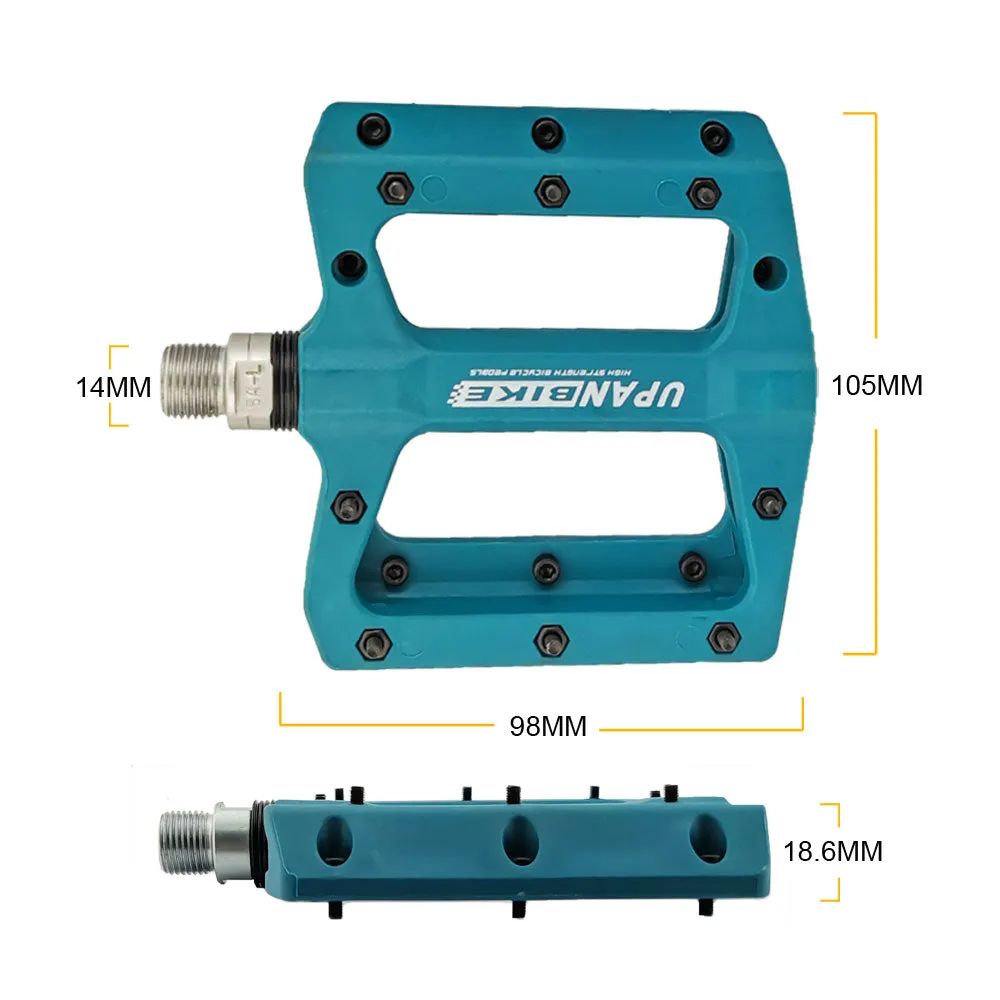

SIZE SPECIFICATIONS

Length:105mm /4.13inch
Height:98mm /3.86inch
Thickness:18.6mm /0.73inch
Axis:14mm
(Manual measurement,there may be some slightly errors)

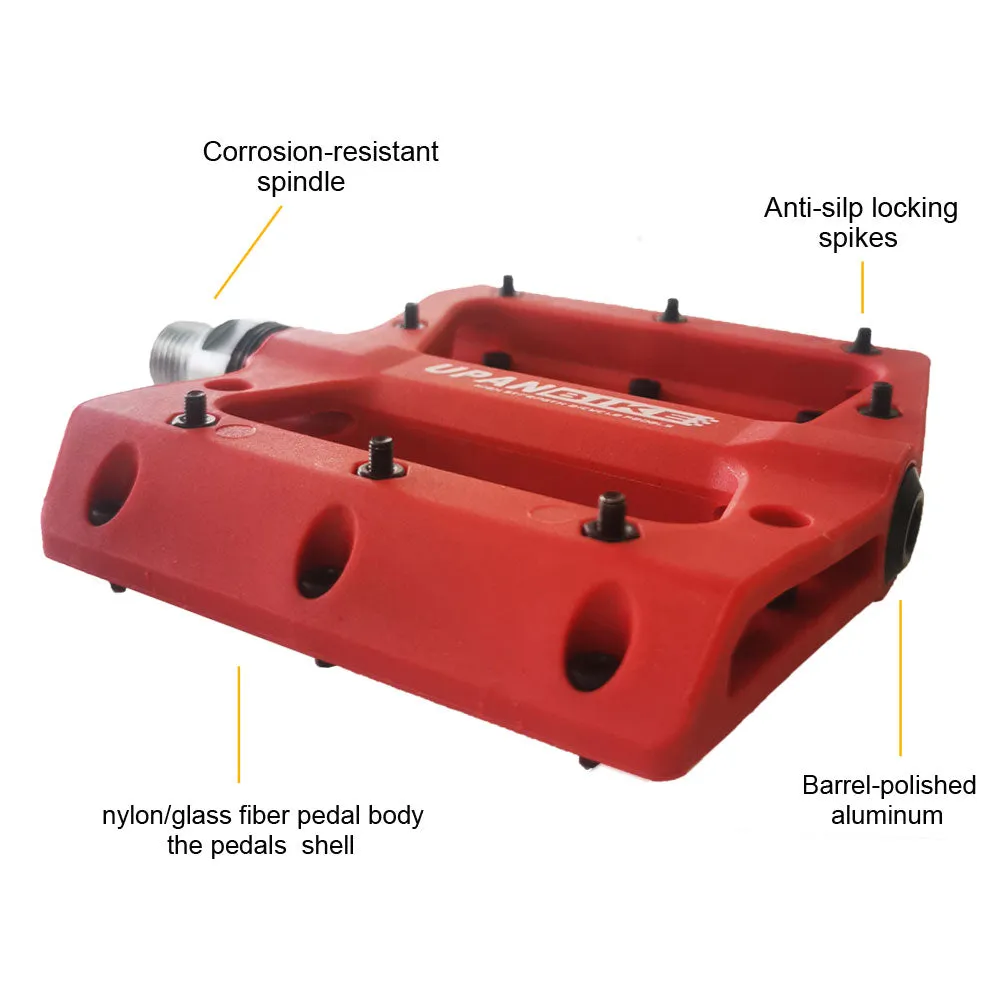

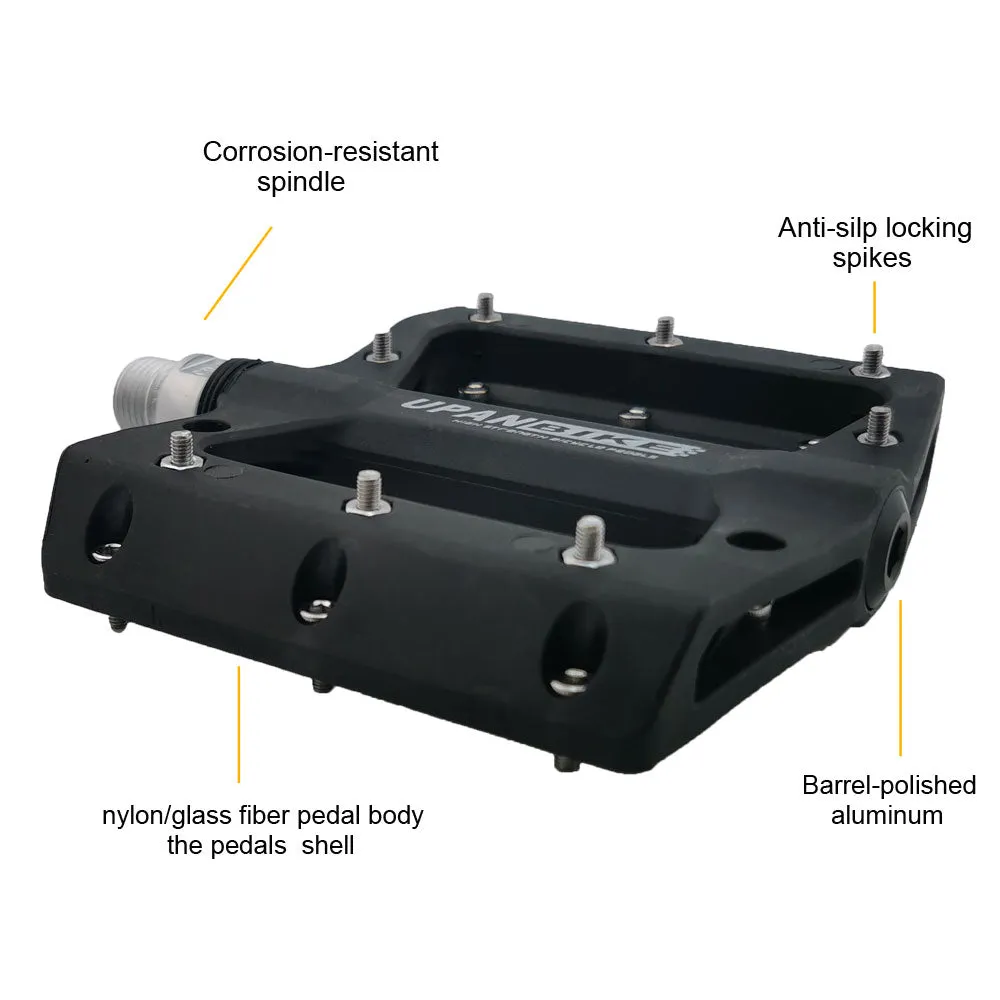

FEATURES

Pedal anti-skid nail made of Chrome-molybdenum steel,excellent slip resistance.
High speed bearings, the degree of lubrication and the strength are greatly improved.
Easy installation,clear mark for left side and right side.

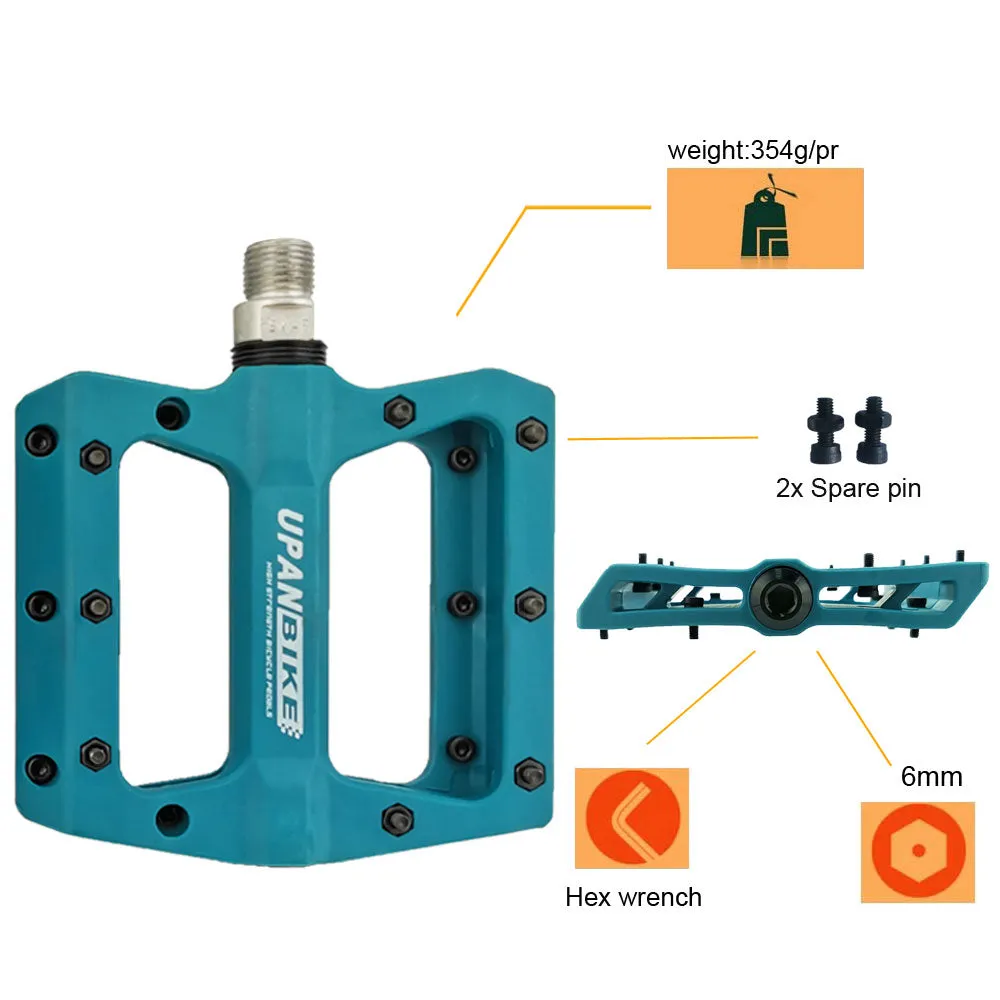

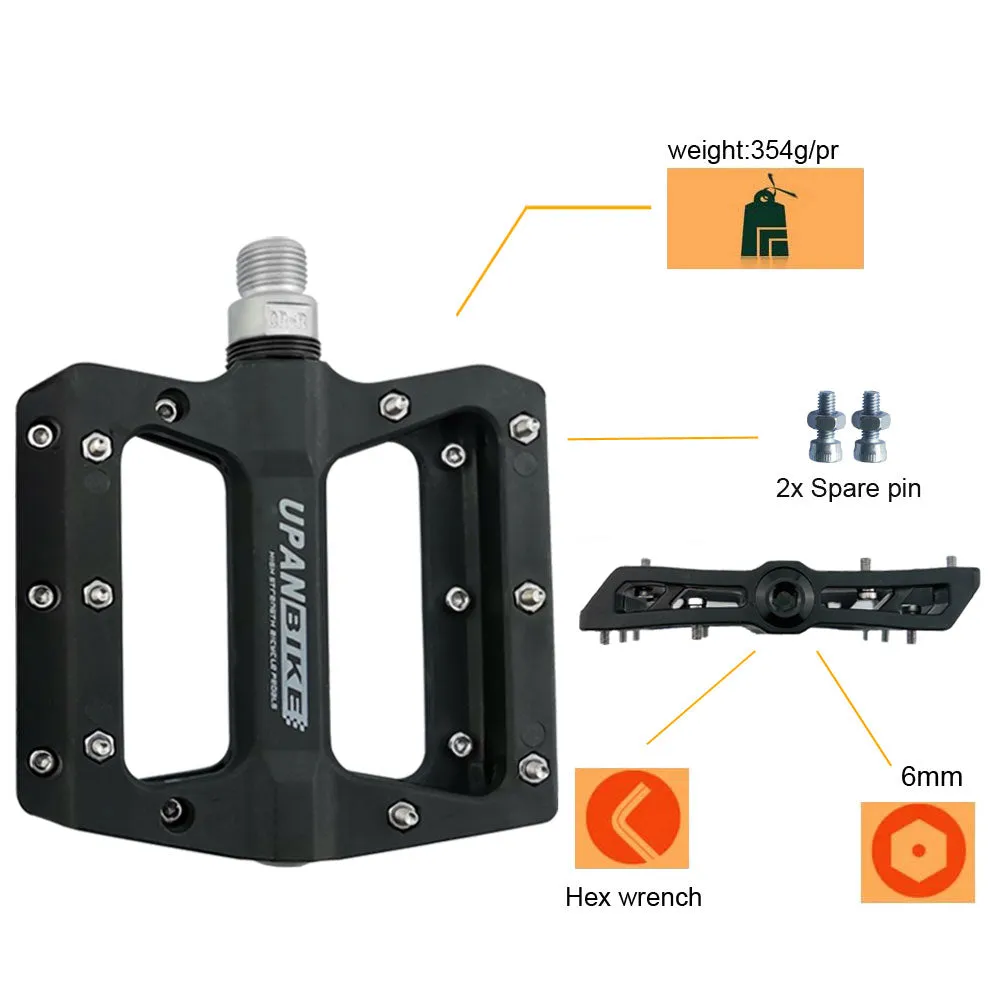

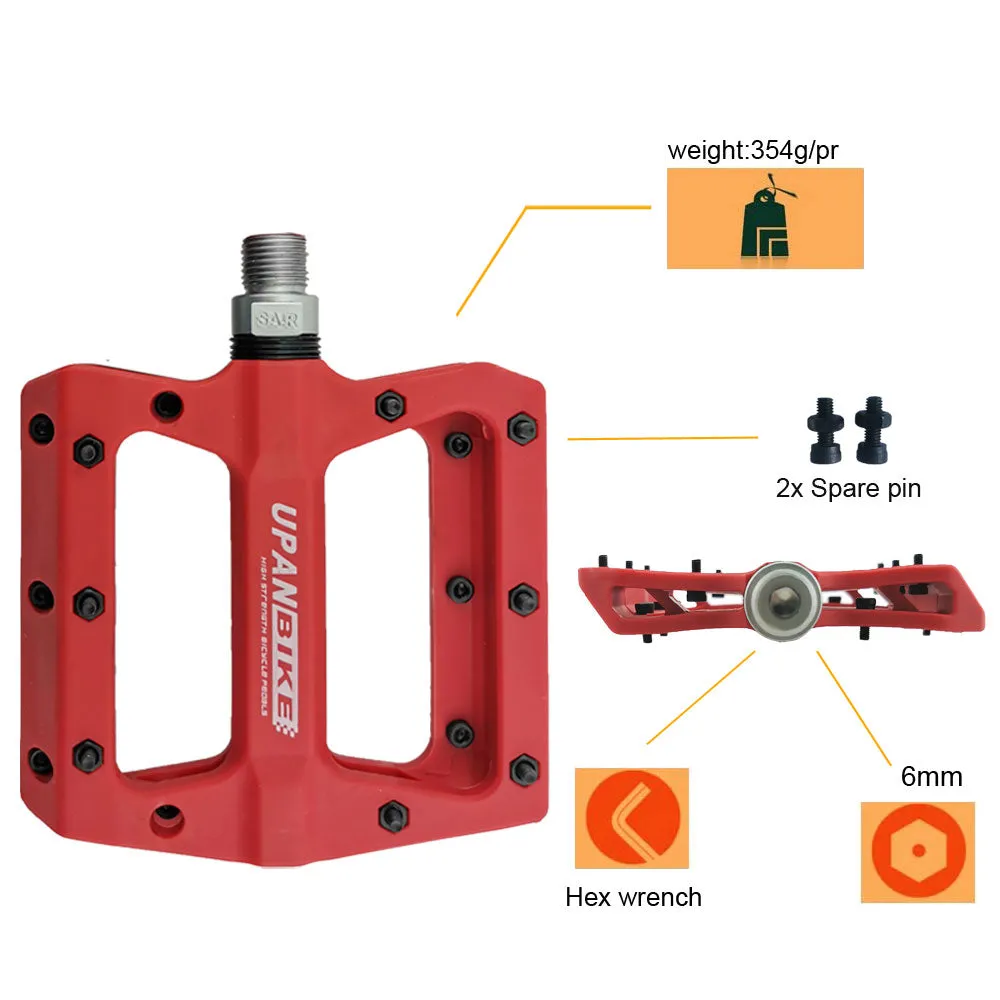

Installation tools: With No.15 wrench or No.6 allen wrench.

INSTALLATIONS
1.First,the pedals are distinguished as L for left and R for right.
2.Drop a little bit of lubricating oil on the screw threads and put the locking gasket between the pedal and the brace (the smoother side faces outside).
3.Use No.6 allen wrench to wrench the pedal tightly. (The left foot is reverse threaded).
